200G QSFP-DD/QSFP56

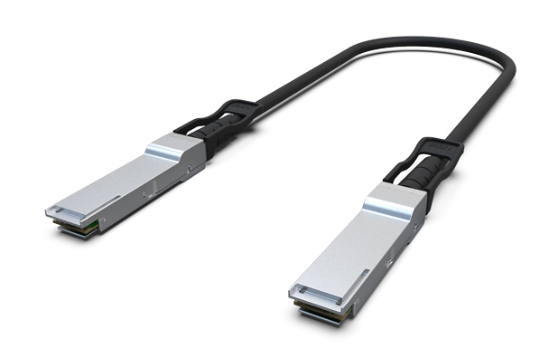

iQSFPDD-200G-DAC1M, 200G QSFPDD to QSFPDD DAC(Direct Attach Cable) Cables (Passive) 1M

200g qdd 2.png

200GBase QSFPDD to QSFPDD DAC (Direct Attach Cable) Cables (Passive) 1M



This 200G Passive DAC cable is equiped with QSFP-DD package at both sides. The max length for 200Gbase QSFP-DD to QSFP-DD DAC is 3-meter. For standard lengths we have 0.5m, 1m, 2m, and 3m, if you need different lengths than our standard lengths welcome to contact us for customed. x in Part Number stands for any data from 0.3m to 3m.





Product Features:

  • Compliant with SFF-8636

  • Compliant with IEEE802.3bj& IEEE802.3cd

  • Support I2C two - line string interface, easy to control

  • Support for hot plugging

  • Low crosstalk

  • Low power comsumption

  • RoHS compliant



Applications:



  • 10G/40G /100G/200G Ethernet

  • Infiniband SDR, DDR, QDR,FDR,EDR,HDR

  • SWITCH

  • Router

  • Concentrator

  • Data center, cloud server





Ordering Information:



  • iQSFPDD-200G-DAC0.5M200G QSFPDD to QSFPDD DAC(Direct Attach Cable) Cables (Passive) 0.5M

  • iQSFPDD-200G-DAC1M200G QSFPDD to QSFPDD DAC(Direct Attach Cable) Cables (Passive) 1M

  • iQSFPDD-200G-DAC1.5M200G QSFPDD to QSFPDD DAC(Direct Attach Cable) Cables (Passive) 1.5M

  • iQSFPDD-200G-DAC2M200G QSFPDD to QSFPDD DAC(Direct Attach Cable) Cables (Passive) 2M

  • iQSFPDD-200G-DAC2.5M200G QSFPDD to QSFPDD DAC(Direct Attach Cable) Cables (Passive) 2.5M

  • iQSFPDD-200G-DAC3M200G QSFPDD to QSFPDD DAC(Direct Attach Cable) Cables (Passive) 3M



iQSFP56-200G-DAC1M, 200G QSFP56 to QSFP56 DAC(Direct Attach Cable) Cables (Passive) 1M

200GBase QSFP56 to QSFP56 DAC (Direct Attach Cable) Cables (Passive) 1M

IOS-D#80107-1, iQSFP56-200G-DAC1M, 200G QSFP56 to QSFP56 DAC(Direct Attach Cable) Cables (Passive) 1M 0



This 200G Passive DAC cable is equiped with QSFP56 package at both sides. The max length for 200Gbase QSFP56 to QSFP56 DAC is 3-meter. For standard lengths we have 0.5m, 1m, 2m, and 3m, if you need different lengths than our standard lengths welcome to contact us for customed. x in Part Number stands for any data from 0.3m to 3m.





InnoOptics Direct Attach Copper Cable InfiniBand HDR up to 200Gb/s QSFP56 LSZH 1m Black pulltab 30AWG

HDR 200Gb/s QSFP56 Direct Attach Copper Cable

InnoOptics DAC cables are high speed, cost-effective alternatives to fiber optics in 200Gb/s InfiniBand HDR applications.

InnoOptics QSFP56 passive copper cable contains eight high-speed copper pairs, each operating at data rates of up to 50Gb/s. Each QSFP56 port comprises an EEPROM providing product information, which can be read by the host system.

InnoOptics's unique quality passive copper cable solutions provide power-efficient connectivity for short distance interconnects. It enables higher port bandwidth, density and configurability at a low cost and reduced power requirement in the data centers.

Rigorous cable production testing ensures best out-of-the-box installation experience, performance and durability.

Highlights

  • IBTA InfiniBand HDR compliant

  • Up to 200Gb/s data rate

  • 4x 50Gb/s PAM4 modulation

  • SFF-8665 compliant

  • Operating case temperature 0-70C

  • Single 3.3V supply voltage

  • Bit Error Rate (BER) better than 1E-15 with InfiniBand HDR systems

  • Hot pluggable

  • RoHS compliant

  • LSZH (Low Smoke Zero Halogen) jacket

  • LF (Lead Free) PCB

  • SFF-8636 compliant I2C management interface



Applications:



  • 10G/40G /100G/200G Ethernet

  • Infiniband SDR, DDR, QDR,FDR,EDR,HDR

  • SWITCH

  • Router

  • Concentrator

  • Data center, cloud server





Ordering Information:



  • iQSFP56-200G-DAC0.5M200G QSFP56 to QSFP56 DAC(Direct Attach Cable) Cables (Passive) 0.5M

  • iQSFP56-200G-DAC1M200G QSFP56 to QSFP56 DAC(Direct Attach Cable) Cables (Passive) 1M

  • iQSFP56-200G-DAC1.5M200G QSFP56 to QSFP56 DAC(Direct Attach Cable) Cables (Passive) 1.5M

  • iQSFP56-200G-DAC2M200G QSFP56 to QSFP56 DAC(Direct Attach Cable) Cables (Passive) 2M

  • iQSFP56-200G-DAC2.5M200G QSFP56 to QSFP56 DAC(Direct Attach Cable) Cables (Passive) 2.5M

  • iQSFP56-200G-DAC3M200G QSFP56 to QSFP56 DAC(Direct Attach Cable) Cables (Passive) 3M

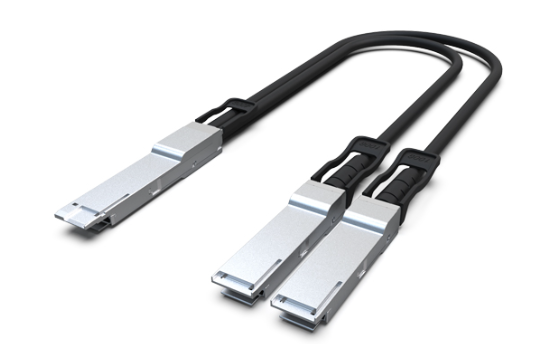

iQSFPDD-200G-DAC1M-B2, 200G QSFPDD to 2x100G QSFP28 Breakout DAC(Direct Attach Cable) Cables (Passive) 1M

200GBase QSFP-DD to 2x100G QSFP28 Breakout DAC (Direct Attach Cable) Cables (Passive) 1M

IOS-D#80110-1, iQSFPDD-200G-DAC1M-B2, 200G QSFPDD to 2x100G QSFP28 Breakout DAC(Direct Attach Cable) Cables (Passive) 1M 0



This 200G breakout Passive DAC cable is equiped with QSFP-DD package at one side, and 2 of 100G QSFP28 package at the other side. The max length for 200Gbase QSFP-DD to 2x100G QSFP28 DAC is 3-meter. For standard lengths we have 0.5m, 1m, 2m, and 3m, if you need different lengths than our standard lengths welcome to contact us for customed. x in Part Number stands for any data from 0.3m to 3m.





Product Features:

  • Compliant with SFF-8636

  • Compliant with IEEE802.3bj& IEEE802.3cd

  • Support I2C two - line string interface, easy to control

  • Support for hot plugging

  • Low crosstalk

  • Low power comsumption

  • RoHS compliant



Applications:



  • 10G/40G /100G/200G Ethernet

  • Infiniband SDR, DDR, QDR,FDR,EDR,HDR

  • SWITCH

  • Router

  • Concentrator

  • Data center, cloud server





Ordering Information:



  • iQSFPDD-200G-DAC0.5M-B2200G QSFPDD to 2x100G QSFP28 Breakout DAC(Direct Attach Cable) Cables (Passive) 0.5M

  • iQSFPDD-200G-DAC1M-B2200G QSFPDD to 2x100G QSFP28 Breakout DAC(Direct Attach Cable) Cables (Passive) 1M

  • iQSFPDD-200G-DAC1.5M-B2200G QSFPDD to 2x100G QSFP28 Breakout DAC(Direct Attach Cable) Cables (Passive) 1.5M

  • iQSFPDD-200G-DAC2M-B2200G QSFPDD to 2x100G QSFP28 Breakout DAC(Direct Attach Cable) Cables (Passive) 2M

  • iQSFPDD-200G-DAC2.5M-B2200G QSFPDD to 2x100G QSFP28 Breakout DAC(Direct Attach Cable) Cables (Passive) 2.5M

  • iQSFPDD-200G-DAC3M-B2200G QSFPDD to 2x100G QSFP28 Breakout DAC(Direct Attach Cable) Cables (Passive) 3M

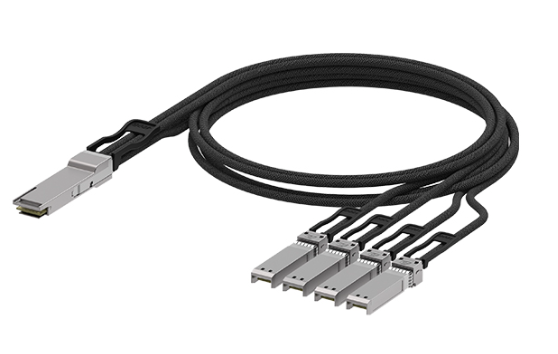

iQSFP56-200G-DAC1M-B4, 200G QSFP56 to 4x50G SFP56 Breakout DAC(Direct Attach Cable) Cables (Passive) 1M

200GBase QSFP56 to 4x50G SFP56 DAC (Direct Attach Cable) Cables (Passive) 1M

IOS-D#80108-1, iQSFP56-200G-DAC1M-B4, 200G QSFP56 to 4x50G SFP56 Breakout DAC(Direct Attach Cable) Cables (Passive) 1M 0



This 200G breakout Passive DAC cable is equiped with QSFP56 package at one side, and 4 of 50G SFP56 package at the other side. The max length for 200Gbase QSFP56 to 4x50G SFP56 DAC is 3-meter. For standard lengths we have 0.5m, 1m, 2m, and 3m, if you need different lengths than our standard lengths welcome to contact us for customed. x in Part Number stands for any data from 0.3m to 3m.





InnoOptics Direct Attach Copper Splitter Cable InfiniBand HDR up to 200Gb/s QSFP56 to 4x50G LSZH 1m Black pulltab 30AWG

HDR 200Gb/s QSFP56 to 4x50G Direct Attach Copper Cable

InnoOptics DAC cables are high speed, cost-effective alternatives to fiber optics in 200Gb/s InfiniBand HDR applications.

InnoOptics QSFP56 passive copper cable contains eight high-speed copper pairs, each operating at data rates of up to 50Gb/s. Each QSFP56 port comprises an EEPROM providing product information, which can be read by the host system.

InnoOptics's unique quality passive copper cable solutions provide power-efficient connectivity for short distance interconnects. It enables higher port bandwidth, density and configurability at a low cost and reduced power requirement in the data centers.

Rigorous cable production testing ensures best out-of-the-box installation experience, performance and durability.

Highlights

  • IBTA InfiniBand HDR compliant

  • Up to 200Gb/s data rate

  • 4x 50Gb/s PAM4 modulation

  • SFF-8665 compliant

  • Operating case temperature 0-70C

  • Single 3.3V supply voltage

  • Bit Error Rate (BER) better than 1E-15 with InfiniBand HDR systems

  • Hot pluggable

  • RoHS compliant

  • LSZH (Low Smoke Zero Halogen) jacket

  • LF (Lead Free) PCB

  • SFF-8636 compliant I2C management interface



Applications:



  • 10G/40G /100G/200G Ethernet

  • Infiniband SDR, DDR, QDR,FDR,EDR,HDR

  • SWITCH

  • Router

  • Concentrator

  • Data center, cloud server





Ordering Information:



  • iQSFP56-200G-DAC0.5M-B4200G QSFP56 to 4x50G SFP56 Breakout DAC(Direct Attach Cable) Cables (Passive) 0.5M

  • iQSFP56-200G-DAC1M-B4200G QSFP56 to 4x50G SFP56 Breakout DAC(Direct Attach Cable) Cables (Passive) 1M

  • iQSFP56-200G-DAC1.5M-B4200G QSFP56 to 4x50G SFP56 Breakout DAC(Direct Attach Cable) Cables (Passive) 1.5M

  • iQSFP56-200G-DAC2M-B4200G QSFP56 to 4x50G SFP56 Breakout DAC(Direct Attach Cable) Cables (Passive) 2M

  • iQSFP56-200G-DAC2.5M-B4200G QSFP56 to 4x50G SFP56 Breakout DAC(Direct Attach Cable) Cables (Passive) 2.5M

  • iQSFP56-200G-DAC3M-B4200G QSFP56 to 4x50G SFP56 Breakout DAC(Direct Attach Cable) Cables (Passive) 3M

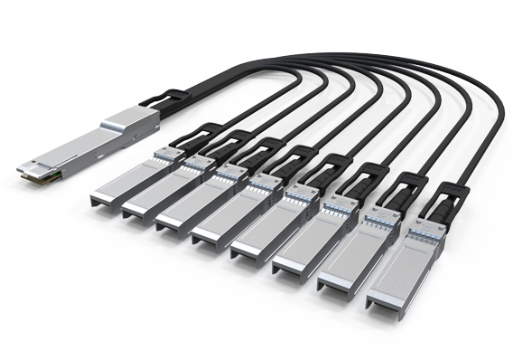

iQSFPDD-200G-DAC1M-B8, 200G QSFPDD to 8x25G SFP28 Breakout DAC(Direct Attach Cable) Cables (Passive) 1M

200GBase QSFP-DD to 8x25G SFP28 Breakout DAC (Direct Attach Cable) Cables (Passive) 1M

IOS-D#80112-1, iQSFPDD-200G-DAC1M-B8, 200G QSFPDD to 8x25G SFP28 Breakout DAC(Direct Attach Cable) Cables (Passive) 1M 0



This 200G breakout Passive DAC cable is equiped with QSFP-DD package at one side, and 8 of 25G SFP28 package at the other side. The max length for 200Gbase QSFP-DD to 8x25G SFP28 DAC is 3-meter. For standard lengths we have 0.5m, 1m, 2m, and 3m, if you need different lengths than our standard lengths welcome to contact us for customed. x in Part Number stands for any data from 0.3m to 3m.





200G QSFP-DD to 8x25G SFP28 DAC Breakout Cable (1-meter, Passive, QSFP-DD to 8 SFP28, 30AWG)

The cable assembly is designed to meet the high density requirements of standard and combo connector configurations. QSFP-DD pluggable solutions enable 200G transmission. This hot-swappable transceiver integrates 8 transmit and 8 receive channels. It is fully compliant with SFF-8472, SFF-8432, QSFP-DD MSA, SFP28 MSA and IEEE802.3bj standards.
It is suitable for very short distances, and offers a highly cost-effective Ethernet connectivity solution for the interconnection between devices using 200G QSFPDD ports and 25G SFP28 ports in data centers, High Performance Computing(HPC) and Switches/Routers/Server/Storage racks and across adjacent racks.





Features and Benefits

  • Compliant with QSFP-DD MSA Standard

  • Compliant with SFP-DD /SFP28 MSA Standard

  • Compliant with IEEE 802.3bj (200GBASE-CR8) Standard

  • Compliant with IEEE 802.3by (25 Ethernet) Standard

  • Data Rate: 28G NRZ Per Channel Total Bandwidth 200 Gbps (8 Lane 28G NRZ)

  • Low Power Consumption

  • Management Interface follows CMIS/SFF-8636 Standard and can be customized

  • Excellent SI Performance

  • Custom Colors For Pull Tab



Market and Application

  • High-Performance Computing (HPC)

  • Network Interface Cards (NIC's)

  • Data Center and Enterprise Storage Systems

  • Telecommunication Equipment

  • 200Gbps Ethernet

  • InfiniBand™ 8X EDR

  • Fibre Channel



Ordering Information:



  • iQSFPDD-200G-DAC0.5M-B8200G QSFPDD to 8x25G SFP28 Breakout DAC(Direct Attach Cable) Cables (Passive) 0.5M

  • iQSFPDD-200G-DAC1M-B8200G QSFPDD to 8x25G SFP28 Breakout DAC(Direct Attach Cable) Cables (Passive) 1M

  • iQSFPDD-200G-DAC1.5M-B8200G QSFPDD to 8x25G SFP28 Breakout DAC(Direct Attach Cable) Cables (Passive) 1.5M

  • iQSFPDD-200G-DAC2M-B8200G QSFPDD to 8x25G SFP28 Breakout DAC(Direct Attach Cable) Cables (Passive) 2M

  • iQSFPDD-200G-DAC2.5M-B8200G QSFPDD to 8x25G SFP28 Breakout DAC(Direct Attach Cable) Cables (Passive) 2.5M

  • iQSFPDD-200G-DAC3M-B8200G QSFPDD to 8x25G SFP28 Breakout DAC(Direct Attach Cable) Cables (Passive) 3M



Descriptions

Product Number

Remarks (0 to 70°C or 32 to 158°F)

QSFP56 Optics Modules

200GBASE-SR4 QSFP56 Transceiver, MPO-12, 100m over MMF

iQSFP56-200G-SR4-S

850nm

200GBASE-SR8 QSFPDD Transceiver, MPO-12, 100m over MMF

iQSFPDD-200G-SR8-S

850nm

QSFP56 DAC (Direct Attach Cable )

200GBASE QSFP56 Passive Copper Cable, 1-meter

iQSFP56-200G-CU1M

PAM4 QSFP56

200GBASE QSFP56 Passive Copper Cable, 2-meter

iQSFP56-200G-CU2M

PAM4   QSFP56

200GBASE QSFP56 Passive Copper Cable, 3-meter

iQSFP56-200G-CU3M

PAM4 QSFP56

200GBase QSFP56 to 4xSFP56 50G Passive Copper Splitter Cable, 1-meter

iQSFP56-4SFP50G-CU1M

PAM4 QSFP56 Breakout 1-4

200GBase QSFP56 to 4xSFP56 50G Passive Copper Splitter Cable, 2-meter

iQSFP56-4SFP50G-CU2M

PAM4 QSFP56 Breakout 1-4

200GBase QSFP56 to 4xSFP5650G Passive Copper Splitter Cable, 3-meter

iQSFP56-4SFP50G-CU3M

PAM4 QSFP56 Breakout 1-4

200GBASE QSFPDD Passive Copper Cable, 1-meter

iQSFPDD-200G-CU1M

NRZ, QSFPDD

200GBASE QSFPDD Passive Copper Cable, 2-meter

iQSFPDD-200G-CU2M

NRZ, QSFPDD

200GBASE QSFPDD Passive Copper Cable, 3-meter

iQSFPDD-200G-CU3M

NRZ, QSFPDD

200GBase QSFPDD to 2xQSFP28 100G Passive Copper Splitter Cable, 1-meter

iQSFPDD-2QSFP100G-CU1M

NRZ, QSFPDD, Breakout 1-2

200GBase QSFPDD to 2xQSFP28 100G Passive Copper Splitter Cable, 2-meter

iQSFPDD-2QSFP100G-CU2M

NRZ, QSFPDD, Breakout 1-2

200GBase QSFPDD to 2xQSFP28 100G Passive Copper Splitter Cable, 3-meter

iQSFPDD-2QSFP100G-CU3M

NRZ, QSFPDD, Breakout 1-2

200GBase QSFPDD to 4xQSFP28 50G Passive Copper Splitter Cable, 1-meter

iQSFPDD-4QSFP50G-CU1M

NRZ, QSFPDD, Breakout 1-4

200GBase QSFPDD to 4xQSFP28 50G Passive Copper Splitter Cable, 2-meter

iQSFPDD-4QSFP50G-CU2M

NRZ, QSFPDD, Breakout 1-4

200GBase QSFPDD to 4xQSFP28 50G Passive Copper Splitter Cable, 3-meter

iQSFPDD-4QSFP50G-CU3M

NRZ, QSFPDD, Breakout 1-4

200GBase QSFPDD to 8xSFP28 25G Passive Copper Splitter Cable, 1-meter

iQSFPDD-8SFP25G-CU1M

NRZ, QSFPDD, Breakout 1-8

200GBase QSFPDD to 8xSFP28 25G Passive Copper Splitter Cable, 2-meter

iQSFPDD-8SFP25G-CU2M

NRZ, QSFPDD, Breakout 1-8

200GBase QSFPDD to 8xSFP28 25G Passive Copper Splitter Cable, 3-meter

iQSFPDD-8SFP25G-CU3M

NRZ, QSFPDD, Breakout 1-8

QSFP56 AOC   (Active Optical Cable )

200GBase QSFP56 Active Optical Cable, 1-meter

iQSFP56-200G-AOC1M

OM3 Fiber

200GBase QSFP56 Active Optical Cable, 2-meter

iQSFP56-200G-AOC2M

OM3 Fiber

200GBase QSFP56 Active Optical Cable, 3-meter

iQSFP56-200G-AOC3M

OM3 Fiber

200GBase QSFP56 Active Optical Cable, 5-meter

iQSFP56-200G-AOC5M

OM3 Fiber

200GBase QSFP56 Active Optical Cable, 7-meter

iQSFP56-200G-AOC7M

OM3 Fiber

200GBase QSFP56 Active Optical Cable, 10-meter

iQSFP56-200G-AOC10M

OM3   Fiber
