800G QSFP-DD/OSFP

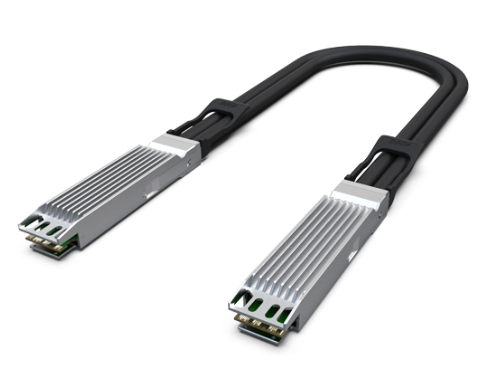

iOSFP-800G-DAC1M,  800G OSFP to OSFP (Direct Attach Cable) Cables (Passive) 1M

400g o.png

Compatible with #OSFP-800-CU1M, #OSFP-800G-DAC-1M, #CAB-O-O-800G-1M, #DAC-OSFP-800G-1M, #MCP1660-W001E30



iOSFP-800G-DAC1M, is 1M of 800Gbase OSFP to OSFP DAC (Direct Attach Cable) Cables (Passive)





This 800G Passive DAC cable is equiped with OSFP package at both sides. The max length for 800Gbase OSFP to OSFP DAC is 3-meter. For standard lengths we have 0.5m, 1m, 2m, and 3m, if you need different lengths than our standard lengths welcome to contact us for customed. x in Part Number stands for any data from 0.3m to 3m.





Product Features for IOS-D#80101-1:

  • Compliant with SFF-8636

  • Compliant with IEEE802.3bj& IEEE802.3cd

  • Support I2C two - line string interface, easy to control

  • Complies with OSFP MSA

  • Support hot plugging

  • Cable length of 1M

  • Low crosstalk, Low power comsumption

  • RoHS compliant

  • Temperature range: 0 to 70°C (32 to 158°F)

  • Tested in Targeted Switches for Superior Performance, Quality and Reliability



Applications for IOS-D#80101-1:



  • 10G,40G,100G,200G Ethernet

  • Infiniband SDR,DDR,QDR,FDR,EDR,HDR

  • SWITCH, Router or Concentrator

  • Data center, cloud server etc.





Ordering Information:



  • iOSFP-800G-DAC0.5M800G OSFP to OSFP (Direct Attach Cable) Cables (Passive) 0.5M

  • iOSFP-800G-DAC1M800G OSFP to OSFP (Direct Attach Cable) Cables (Passive) 1M

  • iOSFP-800G-DAC1.5M800G OSFP to OSFP (Direct Attach Cable) Cables (Passive) 1.5M

  • iOSFP-800G-DAC2M800G OSFP to OSFP (Direct Attach Cable) Cables (Passive) 2M

  • iOSFP-800G-DAC2.5M800G OSFP to OSFP (Direct Attach Cable) Cables (Passive) 2.5M

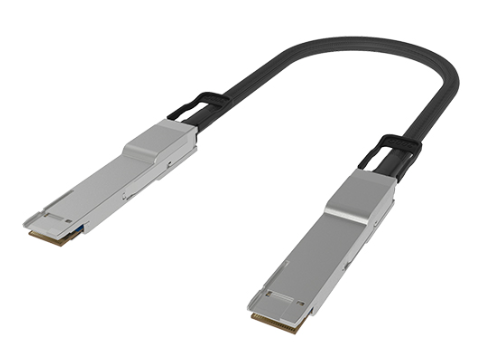

iQSFPDD-800G-DAC1M, 800G QSFPDD to QSFPDD (Direct Attach Cable) Cables (Passive) 1M

800Gbase QSFPDD to QSFPDD DAC (Direct Attach Cable) Cables (Passive) 1M

IOS-D#80108-1, iQSFPDD-800G-DAC1M, 800G QSFPDD to QSFPDD (Direct Attach Cable) Cables (Passive) 1M 0

Compatible with #QDD-800-CU1M, #QDD-800G-DAC-1M, #CAB-D-D-800G-1M, #DAC-Q56DD-800G-1M, #MCP1660-W001E30



iQSFPDD-800G-DAC1M, is 1M of 800Gbase QSFPDD to QSFPDD DAC (Direct Attach Cable) Cables (Passive)





This 800G Passive DAC cable is equiped with QSFP-DD package at both sides. The max length for 800Gbase QSFP-DD to QSFP-DD DAC is 3-meter. For standard lengths we have 0.5m, 1m, 2m, and 3m, if you need different lengths than our standard lengths welcome to contact us for customed. x in Part Number stands for any data from 0.3m to 3m.



Features and Benefits

  • Compliant with QSFP-DD800 MSA Standard

  • Compliant with IEEE 802.3ck (800GBASE-CR8) Standard

  • Compliant with IEEE 802.3cd (400GBASE-CR8) Standard

  • Compliant with IEEE 802.3bj (200GBASE-CR8) Standard

  • Compliant with IEEE 802.3by (25 Ethernet) Standard

  • Data Rate: 112G PAM-4 Per Channel Total Bandwidth 800 Gbps (8 Lane 112G PAM-4)

  • Low Power Consumption

  • Management Interface follows CMIS Standard and can be customized

  • Excellent SI Performance

  • Custom Colors For Pull Tab



Market and Application

  • High-Performance Computing (HPC)

  • Network Interface Cards (NIC's)

  • Data Center and Enterprise Storage Systems

  • Telecommunication Equipment

  • 800Gbps Ethernet

  • InfiniBand™ 8X NDR/HDR/EDR







Ordering Information:



  • iQSFPDD-800G-DAC0.5M800G QSFP-DD to QSFP-DD (Direct Attach Cable) Cables (Passive) 0.5M

  • iQSFPDD-800G-DAC1M800G QSFP-DD to QSFP-DD (Direct Attach Cable) Cables (Passive) 1M

  • iQSFPDD-800G-DAC1.5M800G QSFP-DD to QSFP-DD (Direct Attach Cable) Cables (Passive) 1.5M

  • iQSFPDD-800G-DAC2M800G QSFP-DD to QSFP-DD (Direct Attach Cable) Cables (Passive) 2M

  • iQSFPDD-800G-DAC2.5M800G QSFP-DD to QSFP-DD (Direct Attach Cable) Cables (Passive) 2.5M



Compatible for IOS-D#80108-1:



  • 1m (3ft) Cisco QDD-800-CU1M Compatible 800G QSFP-DD Passive Direct Attach Copper Twinax Cable

  • 1m (3ft) Juniper Networks QDD-800G-DAC-1M Compatible 800G QSFP-DD Passive Direct Attach Copper Twinax Cable

  • 1m (3ft) Arista Networks CAB-D-D-800G-1M Compatible 800G QSFP-DD Passive Direct Attach Copper Twinax Cable

  • 1m (3ft) Dell(DE) DAC-Q56DD-800G-1M Compatible 800G QSFP-DD Passive Direct Attach Copper Twinax Cable

  • 1m (3ft) Mellanox MCP1660-W001E30 Compatible 800G QSFP-DD Passive Direct Attach Copper Twinax Cable

  • 1m (3ft) Generic Compatible 800G QSFP-DD Passive Direct Attach Copper Twinax Cable

  • 1m (3ft) 800G QSFP-DD Passive Direct Attach Copper Twinax Cable for FS Switches

  • Other Customized 1m (3ft)  800G QSFP-DD Passive Direct Attach Copper Twinax Cable


iOSFP-800G-AOC1M, 800G OSFP to OSFP AOC (Active Optical Cable) Cables 1M

800Gbase OSFP to OSFP AOC (Active Optical Cable) Cables 1M



This 800G Active Optical Cable (AOC) cable is equiped with OSFP package at the two sides. The max length for 800Gbase OSFP to OSFP AOC is 100-meter. For standard lengths we have 1m, 2m, 3m, 5m, 7m, 10m, 15m, 20m, 25m, 30m, 50m and 100m, if you need different lengths than our standard lengths welcome to contact us for customed. x in Part Number stands for any data from 0.5m to 100m. For fiber type we use OM3 or OM4 for 800G Active Optical Cable (AOC) .



OSFP-800-AOC1M Compatible 800G OSFP AOC (1-meter, OSFP to OSFP)


The 800G OSFP active optical cables are designed for use in 800 Gigabit Ethernet links over OM4 multimode fibers, and contain eight multi-mode fibers (MMF) optic transceivers per end, each operating at data rates of up to 100Gb/s. This active optical cable is compliant with IEEE 802.3cd, OIF-CEI-04.0, OSFP MSA and OSFP-CMIS-rev4p0.

This AOC is designed with ultra-low loss plates, square rings, dual 8-pair cables and iron shell extens construction for good mechanical properties, bendability and higher transmission bandwidth. Thin fiber cable enables maximum air flow cooling.They enable higher port bandwidth, density and configurability at a low cost, and reduced power requirements in the data centers.





Product Features:

  • Compliant with SFF-8636

  • Compliant with IEEE802.3bj& IEEE802.3cd

  • Support I2C two - line string interface, easy to control

  • Product complies with QSFPDD MSA

  • Support for hot plugging

  • Low crosstalk

  • Low power comsumption

  • RoHS compliant

  • Low power consumption < 10.5W per end

  • Tested in Targeted Switches for Superior Performance, Quality, and Reliability

  • Minimum Bend Radius 30mm for Flexible Routing

  • Simplifies the Patching and Offers a Cost-effective Way for Short Links

  • High-speed Electrical Compliant to IEEE 802.3cd

  • 8x100G PAM4 Retimed 800GAUI-8 Electrical Interface

  • Hot Pluggable QSFP-DD MSA Compliant

  • Class 1 Laser Safety



Applications:



  • 10G/40G /100G/200G/400G/800G Ethernet

  • Infiniband SDR, DDR, QDR,FDR,EDR,HDR

  • SWITCH

  • Router

  • Concentrator

  • Data center, cloud server





Ordering Information:



  • iOSFP-800G-AOC0.5M, 800G OSFP to OSFP AOC (Active Optical Cable) Cables 0.5M

  • iOSFP-800G-AOC1M, 800G OSFP to OSFP AOC (Active Optical Cable) Cables 1M

  • iOSFP-800G-AOC1.5M, 800G OSFP to OSFP AOC (Active Optical Cable) Cables 1.5M

  • iOSFP-800G-AOC2M, 800G OSFP to OSFP AOC (Active Optical Cable) Cables 2M

  • iOSFP-800G-AOC2.5M, 800G OSFP to OSFP AOC (Active Optical Cable) Cables 2.5M

  • iOSFP-800G-AOC3M, 800G OSFP to OSFP AOC (Active Optical Cable) Cables 3M

  • iOSFP-800G-AOC5M, 800G OSFP to OSFP AOC (Active Optical Cable) Cables 5M

  • iOSFP-800G-AOC7M, 800G OSFP to OSFP AOC (Active Optical Cable) Cables 7M

  • iOSFP-800G-AOC10M, 800G OSFP to OSFP AOC (Active Optical Cable) Cables 10M

  • iOSFP-800G-AOC15M, 800G OSFP to OSFP AOC (Active Optical Cable) Cables 15M

  • iOSFP-800G-AOC20M, 800G OSFP to OSFP AOC (Active Optical Cable) Cables 20M

  • iOSFP-800G-AOC25M, 800G OSFP to OSFP AOC (Active Optical Cable) Cables 25M

  • iOSFP-800G-AOC30M, 800G OSFP to OSFP AOC (Active Optical Cable) Cables 30M

  • iOSFP-800G-AOC50M, 800G OSFP to OSFP AOC (Active Optical Cable) Cables 50M

  • iOSFP-800G-AOC100M, 800G OSFP to OSFP AOC (Active Optical Cable) Cables 100M


iQSFPDD-800G-AOC1M, 800G QSFPDD to QSFPDD AOC (Active Optical Cable) Cables 1M

800Gbase QSFPDD to QSFPDD AOC (Active Optical Cable) Cables 1M



This 800G Active Optical Cable (AOC) cable is equiped with QSFP-DD package at the two sides. The max length for 800Gbase QSFP-DD to QSFP-DD AOC is 100-meter. For standard lengths we have 1m, 2m, 3m, 5m, 7m, 10m, 15m, 20m, 25m, 30m, 50m and 100m, if you need different lengths than our standard lengths welcome to contact us for customed. x in Part Number stands for any data from 0.5m to 100m. For fiber type we use OM3 or OM4 for 400G Active Optical Cable (AOC) .



QDD-800-AOC1M Compatible 800G QSFP-DD AOC (1-meter, QSFP-DD to QSFP-DD)


The 800G QSFP-DD active optical cables are designed for use in 800 Gigabit Ethernet links over OM4 multimode fibers, and contain eight multi-mode fibers (MMF) optic transceivers per end, each operating at data rates of up to 100Gb/s. This active optical cable is compliant with IEEE 802.3cd, OIF-CEI-04.0, QSFP-DD MSA and QSFP-DD-CMIS-rev4p0.

This AOC is designed with ultra-low loss plates, square rings, dual 8-pair cables and iron shell extens construction for good mechanical properties, bendability and higher transmission bandwidth. Thin fiber cable enables maximum air flow cooling.They enable higher port bandwidth, density and configurability at a low cost, and reduced power requirements in the data centers.





Product Features:

  • Compliant with SFF-8636

  • Compliant with IEEE802.3bj& IEEE802.3cd

  • Support I2C two - line string interface, easy to control

  • Product complies with QSFPDD MSA

  • Support for hot plugging

  • Low crosstalk

  • Low power comsumption

  • RoHS compliant

  • Low power consumption < 10.5W per end

  • Tested in Targeted Switches for Superior Performance, Quality, and Reliability

  • Minimum Bend Radius 30mm for Flexible Routing

  • Simplifies the Patching and Offers a Cost-effective Way for Short Links

  • High-speed Electrical Compliant to IEEE 802.3cd

  • 8x100G PAM4 Retimed 800GAUI-8 Electrical Interface

  • Hot Pluggable QSFP-DD MSA Compliant

  • Class 1 Laser Safety



Applications:



  • 10G/40G /100G/200G/400G/800G Ethernet

  • Infiniband SDR, DDR, QDR,FDR,EDR,HDR

  • SWITCH

  • Router

  • Concentrator

  • Data center, cloud server





Ordering Information:



  • iQSFPDD-800G-AOC0.5M, 800G QSFPDD to QSFPDD AOC (Active Optical Cable) Cables 0.5M

  • iQSFPDD-800G-AOC1M, 800G QSFPDD to QSFPDD AOC (Active Optical Cable) Cables 1M

  • iQSFPDD-800G-AOC1.5M, 800G QSFPDD to QSFPDD AOC (Active Optical Cable) Cables 1.5M

  • iQSFPDD-800G-AOC2M, 800G QSFPDD to QSFPDD AOC (Active Optical Cable) Cables 2M

  • iQSFPDD-800G-AOC2.5M, 800G QSFPDD to QSFPDD AOC (Active Optical Cable) Cables 2.5M

  • iQSFPDD-800G-AOC3M, 800G QSFPDD to QSFPDD AOC (Active Optical Cable) Cables 3M

  • iQSFPDD-800G-AOC5M, 800G QSFPDD to QSFPDD AOC (Active Optical Cable) Cables 5M

  • iQSFPDD-800G-AOC7M, 800G QSFPDD to QSFPDD AOC (Active Optical Cable) Cables 7M

  • iQSFPDD-800G-AOC10M, 800G QSFPDD to QSFPDD AOC (Active Optical Cable) Cables 10M

  • iQSFPDD-800G-AOC15M, 800G QSFPDD to QSFPDD AOC (Active Optical Cable) Cables 15M

  • iQSFPDD-800G-AOC20M, 800G QSFPDD to QSFPDD AOC (Active Optical Cable) Cables 20M

  • iQSFPDD-800G-AOC25M, 800G QSFPDD to QSFPDD AOC (Active Optical Cable) Cables 25M

  • iQSFPDD-800G-AOC30M, 800G QSFPDD to QSFPDD AOC (Active Optical Cable) Cables 30M

  • iQSFPDD-800G-AOC50M, 800G QSFPDD to QSFPDD AOC (Active Optical Cable) Cables 50M

  • iQSFPDD-800G-AOC100M, 800G QSFPDD to QSFPDD AOC (Active Optical Cable) Cables 100M
